主要特性和功能
-
- 9 kHz 至 4.5/6.5/ 9/14/20 GHz

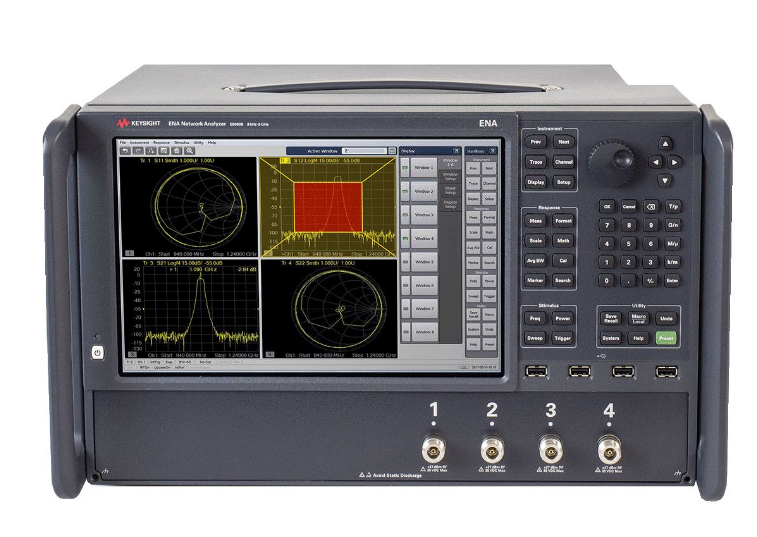

- 目前市場上最靈活、功能最全面的 ENA 網絡分析儀
- 提供廣泛的測量應用軟件任您選擇，對射頻測試結果進行深入分析
- 與是德科技高性能網絡分析儀擁有同樣直觀的圖形用戶界面
- 代碼與 E5071C 兼容
最大頻率 9 GHz
動態范圍 135 dB
輸出功率 15 dBm
內置端口數量 2 或 4 端口
諧波 -20 dBc
掃描速度最高可達 201 個點 2 ms
元器件
電纜
混頻器/變頻器
放大器
諧振器
Options:
E5080B-2D0 2-port test set, 9 kHz to 14 GHz
E5080B-2K0 2-port test set, 9 kHz to 20 GHz
E5080B-440 4-port test set, 9 kHz to 4.5 GHz
E5080B-460 4-port test set, 9 kHz to 6.5 GHz
E5080B-490 4-port test set, 9 kHz to 9 GHz
E5080B-4D0 4-port test set, 9 kHz to 14 GHz
E5080B-4K0 4-port test set, 9 kHz to 20 GHz
E5080B-240 2-port test set, 9 kHz to 4.5 GHz
E5080B-260 2-port test set, 9 kHz to 6.5 GHz
E5080B-290 2-port test set, 9 kHz to 9 GHz
E5080B-140 Add internal bias tees for 4-port E5080B up to 20 GHz
E5080B-120 Add internal bias tees for 2-port E5080B up to 20 GHz
E5080B-1A7 Calibration + Uncertainties + Guardbanding
E5080B-A6J ANSI Z540-1-1994 Calibration
E5080B-172 Add GPIB interface
E5080B-1E5 Add high stability timebase
E5080B-175 Add analog input and output
E5080B-021 Add pulse modulator to internal 1st source
E5080B-090 Spectrum analysis hardware, 9 kHz to 4.5 GHz
E5080B-091 Spectrum analysis hardware, 9 kHz to 6.5 GHz
E5080B-092 Spectrum analysis hardware, 9 kHz to 9 GHz
E5080B-093 Spectrum analysis hardware, 9 kHz to 14 GHz
E5080B-094 Spectrum analysis hardware, 9 kHz to 20 GHz
E5080B-181 Add keyboard
E5080B-182 Add mouse
E5080B-1CM Rack mount kit for installation without handles
E5080B-1CP Rack mount kit for installation with handles
S96086A 增益壓縮測量
S96007A 自動夾具移除
S96010A 時域分析
S96011A 配有 TDR 選件的增強時域分析軟件
S96025A 基本脈沖射頻測量
S96029A 利用矢量校正進行噪聲系數測量
S96082A 標量混頻器/轉換器測量
S96084A 嵌入式本振功能
S96090A 頻譜分析
動態范圍 135 dB
輸出功率 15 dBm
內置端口數量 2 或 4 端口
諧波 -20 dBc
掃描速度最高可達 201 個點 2 ms
元器件
電纜
混頻器/變頻器
放大器
諧振器
Options:
E5080B-2D0 2-port test set, 9 kHz to 14 GHz
E5080B-2K0 2-port test set, 9 kHz to 20 GHz
E5080B-440 4-port test set, 9 kHz to 4.5 GHz
E5080B-460 4-port test set, 9 kHz to 6.5 GHz
E5080B-490 4-port test set, 9 kHz to 9 GHz
E5080B-4D0 4-port test set, 9 kHz to 14 GHz
E5080B-4K0 4-port test set, 9 kHz to 20 GHz
E5080B-240 2-port test set, 9 kHz to 4.5 GHz
E5080B-260 2-port test set, 9 kHz to 6.5 GHz
E5080B-290 2-port test set, 9 kHz to 9 GHz
E5080B-140 Add internal bias tees for 4-port E5080B up to 20 GHz
E5080B-120 Add internal bias tees for 2-port E5080B up to 20 GHz
E5080B-1A7 Calibration + Uncertainties + Guardbanding
E5080B-A6J ANSI Z540-1-1994 Calibration
E5080B-172 Add GPIB interface
E5080B-1E5 Add high stability timebase
E5080B-175 Add analog input and output
E5080B-021 Add pulse modulator to internal 1st source
E5080B-090 Spectrum analysis hardware, 9 kHz to 4.5 GHz
E5080B-091 Spectrum analysis hardware, 9 kHz to 6.5 GHz
E5080B-092 Spectrum analysis hardware, 9 kHz to 9 GHz
E5080B-093 Spectrum analysis hardware, 9 kHz to 14 GHz
E5080B-094 Spectrum analysis hardware, 9 kHz to 20 GHz
E5080B-181 Add keyboard
E5080B-182 Add mouse
E5080B-1CM Rack mount kit for installation without handles
E5080B-1CP Rack mount kit for installation with handles
S96086A 增益壓縮測量
S96007A 自動夾具移除
S96010A 時域分析
S96011A 配有 TDR 選件的增強時域分析軟件
S96025A 基本脈沖射頻測量
S96029A 利用矢量校正進行噪聲系數測量
S96082A 標量混頻器/轉換器測量
S96084A 嵌入式本振功能
S96090A 頻譜分析
