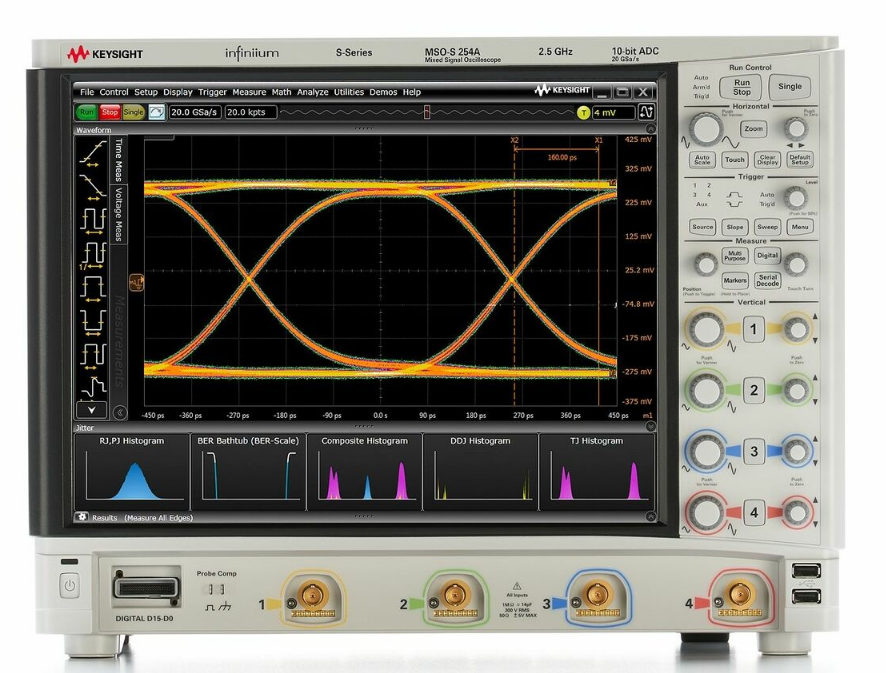

2.5 GHz 帶寬（可升級）
4 個模擬通道和 16 個數字通道
高達 20 GSa/s 的采樣率和每通道標配的 50 Mpts 存儲器可以捕獲更長時間的信號跡線
具有 7.4 位系統 ENOB 和 10 位模數轉換器（ADC），可獲得出色的信號完整性
15 英寸多點觸控電容觸摸屏讓示波器更容易使用，固態硬盤可以加快啟動速度和提高可靠性
廣泛的協議、一致性測試和分析軟件可以改善您的測試
技術指標
帶寬 2.5 GHz
通道數 4 + 16
最大存儲器深度
800 Mpts（2 通道），400 Mpts（4 通道）
最大采樣率
20 GSa/s（2 通道），10 GSa/s（4 通道）
ADC 位數 10 bits
選件
Node locked license for version 4.xx
N5392C-2NL Ethernet compliance application with Energy Efficient Ethernet upgrade, node locked license
N5392C-3NL Ethernet compliance application only, node locked license
N5392C-1NL Ethernet compliance with Energy Efficient Ethernet, node locked license
N5413C-1NL DDR2 and LPDDR2 Compliance Test Application, node locked license
N5413C-2NL Upgrade for LPDDR2 Compliance Test Application, node locked license
N5413C-3NL DDR2 and LPDDR2 Debug Tool, node locked license
N5416B-1NL USB 2.0 Compliance Software, node locked license
N5431B-1NL XAUI compliance application, node locked license
U7231C-1NL DDR3 and LPDDR3 Compliance Software, node locked license
U7231C-2NL Upgrade to DDR3 and LPDDR3 Compliance Software, node locked license
U7231C-3NL DDR3 and LPDDR3 Debug Tool, node locked license
N6462B-1NL DDR4 and LPDDR4 compliance test software, node locked license
N6462B-3NL DDR4 Debug Tool, node locked license
U1882B-1NL Power measurement analysis software, node locked license
Fixed Perpetual and non-network licenses
N5392C-1FP Ethernet compliance with Energy Efficient Ethernet, fixed perpetual license
N5392C-1TP Ethernet compliance with Energy Efficient Ethernet, fixed transportable license
N5392C-2FP Ethernet compliance application with Energy Efficient Ethernet upgrade, fixed perpetual license
N5392C-3FP Ethernet compliance application only, fixed perpetual license
N5392C-3TP Ethernet compliance application only, transportable perpetual license
N5413C-1FP DDR2 and LPDDR2 Compliance Test Application, fixed perpetual license
N5413C-1TP DDR2 and LPDDR2 Compliance Test Application, transportable perpetual license
N5413C-2FP Upgrade for LPDDR2 Compliance Test Application, fixed perpetual license
N5413C-3TP DDR2 and LPDDR2 Debug Tool, transportable perpetual license
N5413C-3FP DDR2 and LPDDR2 Debug Tool, fixed perpetual license
N5416B-1FP USB 2.0 Compliance Software, fixed perpetual license
N5416B-1TP USB 2.0 Compliance Software, transportable perpetual license
N5431B-1FP XAUI compliance application, fixed perpetual license
N5431B-1TP XAUI compliance application, transportable perpetual license
U7231C-1FP DDR3 and LPDDR3 Compliance Software, fixed perpetual license
U7231C-1TP DDR3 and LPDDR3 compliance test software application, transportable perpetual license
U7231C-2FP Upgrade to DDR3 and LPDDR3 Compliance Software, fixed perpetual license
U7231C-3FP DDR3 and LPDDR3 Debug Tool, fixed perpetual license
U7231C-3TP DDR3 and LPDDR3 Debug Tool, transportable perpetual license
N6462B-1FP DDR4 and LPDDR4 compliance test software, fixed perpetual license
N6462B-1TP DDR4 and LPDDR4 compliance test software, transportable perpetual license
N6462B-3FP DDR4 Debug Tool, fixed perpetual license
N6462B-3TP DDR4 Debug Tool, transportable perpetual license
N6462B-2TP Upgrade to LPDDR4 compliance software, transportable perpetual license
N6462B-2FP Upgrade to LPDDR4 compliance software, fixed perpetual license
N6462B-4FP LPDDR4 Debug Tool, fixed perpetual license
N6462B-4TP LPDDR4 Debug Tool, transportable perpetual license
N6462B-5FP LP/DDR4 Compliance Software Data Analytics Web Service, fixed perpetual license
N6462B-5TP LP/DDR4 Compliance Software Data Analytics Web Service, transportable perpetual license
U7250A-1FP MIPI C-PHY Compliance, fixed perpetual license
U7250A-1TP MIPI C-PHY Compliance, transportable perpetual license
N6474A-1FP ONFI Compliance Test, fixed perpetual license
N6474A-1TP ONFI Compliance Test, transportable perpetual license
N5399F-1FP HDMI 1.4 TMDS transmitter electrical compliance and validation software, fixed perpetual license
N5399F-1TP HDMI 1.4 TMDS transmitter electrical compliance and validation software, transportable perpetual license
N5399F-2FP Upgrade to HDMI 1.4 TMDS transmitter electrical compliance and validation software, fixed perpetual license
U7238E-1FP MIPI D-PHY 2.0 Compliance Test Software, fixed perpetual license
U7238E-1TP MIPI D-PHY 2.0 Compliance Test Software, transportable perpetual license
U7238E-2FP MIPI D-PHY 2.0 Compliance upgrade from U7238C/D, fixed perpetual license
U7249E-1FP MIPI M-PHY 4.1 Compliance Test Software, fixed perpetual license
U7249E-1TP MIPI M-PHY 4.1 Compliance Test Software, transportable perpetual license
U7249E-2FP MIPI M-PHY 4.1 Compliance upgrade from U7249C/D, fixed perpetual license
U1882B-1FP Power measurement analysis software, fixed perpetual license
U1882B-1TP Power measurement analysis software, transportable perpetual license
N5393G-2FP PCIe Compliance 4.0 Upgrade from N5393E (2.5G Only), fixed perpetual license
N5393G-3FP PCIe 4.0 Compliance Application 2.5G Only, fixed perpetual license
N5393G-3TP PCIe 4.0 Compliance Application 2.5G Only, transportable perpetual license
DSOS000-A6J ANSI Z540 Compliant Calibration
DSOS000-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
DSOS000-AMG Calibration + Uncertainties + Guardbanding (Accredited)
DSOS000-100 Includes 100 Mpts/CH Memory
DSOS000-200 Includes 200 Mpts/CH Memory
DSOS000-400 Includes 400 Mpts/CH Memory
DSOS000-821 Precision BNC to SMA adapters (qty 2)
DSOS001-DSA Includes 200 Mpts/CH Memory and EZJIT Complete
